| Tên thương hiệu: | TGFQ |
| Số mô hình: | MAG170VP-3800 |
| MOQ: | 1 |
| giá bán: | 675.00USD |
| Chi tiết đóng gói: | ĐÓNG GÓI NNER: Bọc bằng màng nilong, dán nhãn rõ ràng cho từng mặt hàng. ĐÓNG GÓI BÊN NGOÀI: Thùng C |
| Điều khoản thanh toán: | L/C,T/T,D/P,D/A |
| Compatible Models | CX210C/SH210-5 |

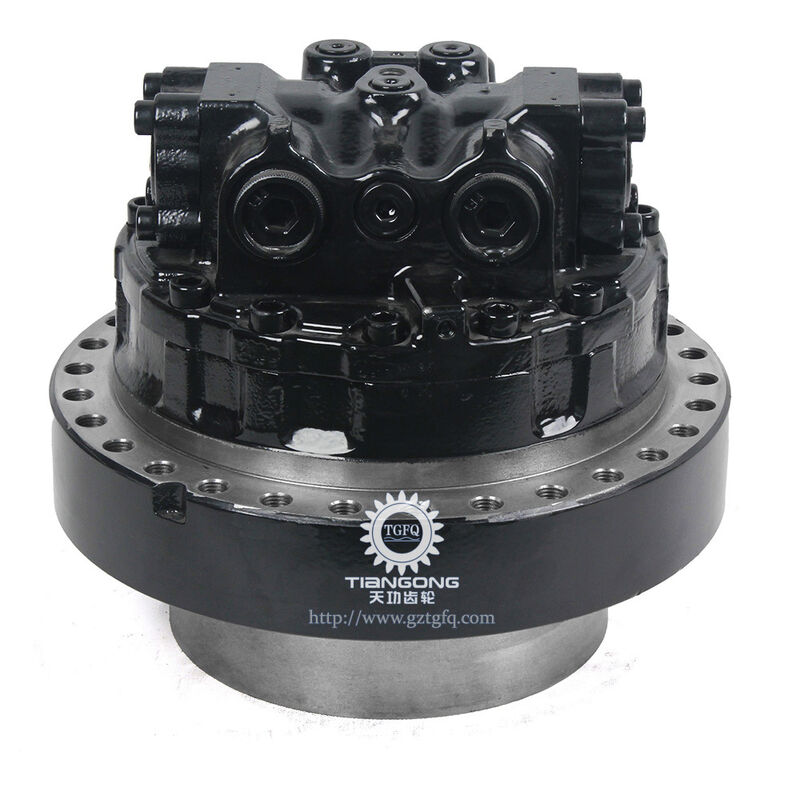

| Category | Excavator travel motor |
| Brand | TGFQ |
| Part Numbers | KRA1426/KRA1860/KRA10120/KRA15440 |
| Packing | Wooden Case |
| Delivery Time | 1-3 days after payment confirmation |
| Shipping Methods | By Sea, Air, or Express |
| # | Part No. | Description | Qty |
| KRA1860 | MOTO-REDUCTION GEAR | 1 | |
| 2 | NSS | NOT SOLD SEPARAT; Housing | 1 |
| 4 | NSS | NOT SOLD SEPARAT; Plate | 1 |
| 21 | LJ00743 | VALVE, PRESSURE RELI; EF | 2 |
| ---- | Replaced By 160565a1 | ||
| ---- | Consists Of Ref. Numbers 22 To 39 | ||
| 21 | 160565A1 | VALVE | 2 |
| ---- | Consists Of Ref. Numbers 22 To 39 | ||
| 22 | NSS | NOT SOLD SEPARAT; Sleeve, Coupling | 1 |
| 23 | NSS | NOT SOLD SEPARAT; Poppet, Valve | 1 |
| 24 | NSS | NOT SOLD SEPARAT; Seat, Valve | 1 |
| 25 | NSS | NOT SOLD SEPARAT; Seat, Spring | 1 |
| 26 | NSS | NOT SOLD SEPARAT; Spring | 1 |
| 27 | NSS | NOT SOLD SEPARAT; Plug | 1 |
| 28 | 155225A1 | O-RING | 1 |
| 29 | NSS | NOT SOLD SEPARAT; Guide | 1 |
| 30 | NSS | NOT SOLD SEPARAT; Piston | 1 |
| 31 | 154491A1 | O-RING | 1 |
| 32 | 153974A1 | BACK-UP RING | 2 |
| 33 | NSS | NOT SOLD SEPARAT; Spring | 1 |
| 34 | NSS | NOT SOLD SEPARAT; Seat, Spring | 1 |
| 35 | NSS | NOT SOLD SEPARAT; O-Ring | 1 |
| 36 | NSS | NOT SOLD SEPARAT; Setscrew | 1 |
| 37 | NSS | NOT SOLD SEPARAT; Nut | 1 |
| 38 | 154479A1 | O-RING | 1 |
| 39 | 153964A1 | BACK-UP RING | 2 |
| 42 | NSS | NOT SOLD SEPARAT; Spool | 1 |
| 43 | NSS | NOT SOLD SEPARAT; End | 1 |
| 44 | TJ00203 | FILTER | 1 |
| 45 | 154447A1 | O-RING | 1 |
| 46 | 154443A1 | O-RING | 1 |
| 47 | 153940A1 | BACK-UP RING | 1 |
| 48 | 154061A1 | BACK-UP RING | 1 |
| 49 | 160545A1 | RING, SNAP; RING SNAP | 1 |
| 55 | NSS | NOT SOLD SEPARAT; Plug | |
| 59 | 161773A1 | PLUG | 4 |
| 60 | 154467A1 | O-RING,10.8mm ID x 2.4mm Width | 4 |
| 64 | LB00545 | SHAFT | 1 |
| 65 | LS00128 | MANIFOLD VALVE | 1 |
| ---- | Consists Of Ref. Numbers 66 To 74 | ||
| 66 | NSS | NOT SOLD SEPARAT; Block | 1 |
| 67 | NSS | NOT SOLD SEPARAT; Piston Assy | 9 |
| 68 | NSS | NOT SOLD SEPARAT; Holder | 1 |
| 69 | NSS | NOT SOLD SEPARAT; Coupling | 1 |
| 70 | 160103A1 | RING, SNAP; RING SNAP | 1 |
| 71 | 160203A1 | SPRING SEAT | 1 |
| 72 | 160590A1 | SPRING | 1 |
| 73 | 158113A1 | COLLAR | 1 |
| 74 | 155631A1 | COTTER PIN | 3 |
| 75 | LR00581 | PLATE | 1 |
| 76 | 155950A1 | BALL | 2 |
| 77 | NSS | NOT SOLD SEPARAT; Piston | 2 |
| 78 | LB00546 | BEARING,50mm ID x 90mm OD x 20mm W | 1 |
| 79 | LB00547 | BEARING,35mm ID x 72mm OD x 17mm W | 1 |
| 80 | 155578A1 | PIN; COTTER PIN | 1 |
| 81 | 108R014Z035N | BOLT | 10 |
| 82 | LE00779 | OIL SEAL | 1 |
| 83 | LR00582 | PLATE | 3 |
| 84 | 165696A1 | PLATE | 2 |
| 85 | LJ00746 | PISTON | 1 |
| 86 | 165720A1 | OIL SEAL | 1 |
| 87 | 165721A1 | SEALING RING | 1 |
| 88 | 156090A1 | SPRING | 8 |
| 89 | 160097A1 | COTTER PIN | 4 |
| 90 | 160592A1 | SPRING | 2 |
| 91 | 160330A1 | PORT | 1 |
| 92 | 154463A1 | O-RING | 4 |
| 93 | 155220A1 | O-RING | 1 |
| LZ00378 | SEAL KIT | ||
