| Tên thương hiệu: | TGFQ |
| Số mô hình: | EC210B |
| MOQ: | 1 |
| giá bán: | 750.00USD |
| Chi tiết đóng gói: | ĐÓNG GÓI NNER: Bọc bằng màng nilong, dán nhãn rõ ràng cho từng mặt hàng. ĐÓNG GÓI BÊN NGOÀI: Thùng C |
| Điều khoản thanh toán: | L/c, t/t, d/p, d/a |

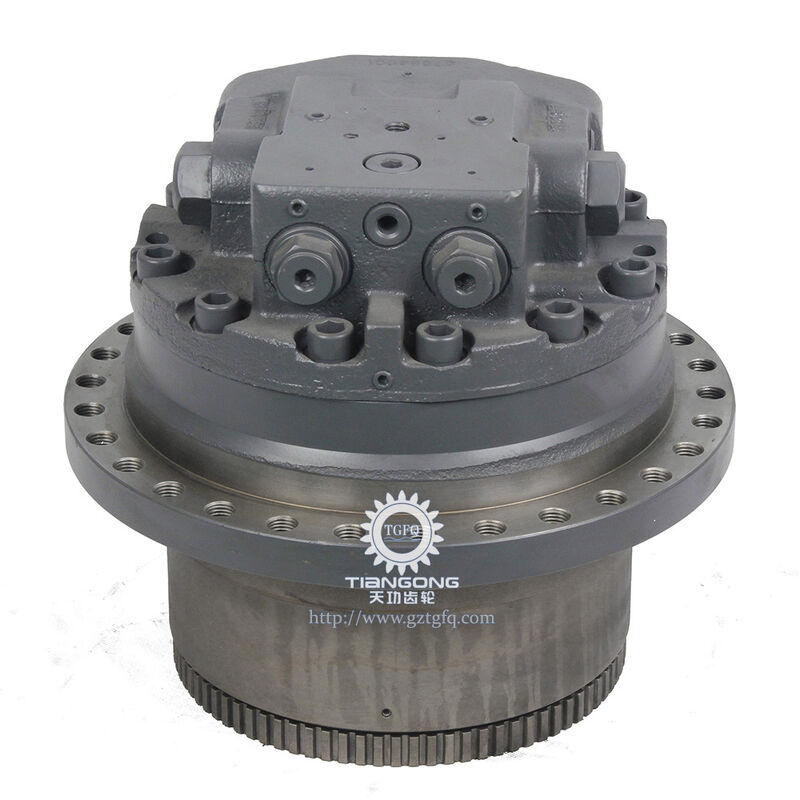

The SA 1143-01270/VOE 14524184/VOE 14533651 EC210B Travel Motor Unit is engineered for reliable performance in demanding excavator applications, ensuring durability and operational efficiency.
Reverse Prevention System
The motor and mounting group incorporates a built-in reverse-prevention valve that eliminates unintended reverse rotation, preventing operational errors and safety hazards.
This safety feature is critical during heavy lifting operations where reverse rotation could cause load drops and serious accidents. The high-flow capacity valve maintains normal motor operation and response speed while providing reliable performance under high hydraulic pressure and frequent use conditions.
| Compatible Models | EC210B |
|---|---|
| Category | Excavator Swing Hydraulic Motor |
| Brand | TGFQ |
| Part Numbers | SA 1143-01270/VOE 14524184/VOE 14533651 |
| Packing | Wooden case |
| Delivery Time | 1-3 days after payment confirmation |
| Shipping Methods | By Sea, Air, or Express |
Each unit undergoes thorough inspection and detailed photos are provided for buyer confirmation before shipping to ensure product quality and satisfaction.
Hydraulic motors are essential components in earthmoving equipment including excavators, backhoe loaders, skid-steer loaders, forklifts, heavy dump trucks, and bulldozers. They power hydraulic cylinders that extend and retract during various operational cycles.
The swing brake features a multi-disc and plate assembly located in the first stage planetary gear. This spring-applied, hydraulically-released system functions as a parking brake and is not designed for cyclic service braking. Discs and plates are lubricated by the release signal oil for optimal performance and longevity.
| # | Part No. | Description | 8277784 |
|---|---|---|---|
| SA 1143-01270 | Travel motor; SER NO 10001-12714SER NO 30001-30315 | 1 | |
| VOE 14524184 | Travel motor; SER NO 12715-14677SER NO 30316-30780 | 1 | |
| VOE 14533651 | Travel motor; SER NO 14678-SER NO 30781- | 1 | |
| 1 | SA 8230-21631 | Piston | 1 |
| 2 | SA 8230-28900 | Piston | 9 |
| 3 | VOE 14500075 | Piston | 1 |
| 4 | VOE 14500076 | Seat | 1 |
| 6 | SA 8230-21530 | Plate | 1 |
| 7 | SA 8230-21540 | Ball | 1 |
| 8 | SA 8230-31160 | Washer | 2 |
| 9 | SA 8230-21560 | Washer | 1 |
| 10 | SA 8230-21570 | Spring | 1 |
| 11 | VOE 14500077 | Ring | 1 |
| 12 | VOE 14500078 | Bearing | 5 |
| 13 | SA 8230-15140 | Piston | 1 |
| 14 | VOE 14500079 | Piston | 1 |
| 15 | VOE 14500080 | Seat | 1 |
| 16 | SA 8230-33140 | Shaft | 1 |
| 17 | SA 8230-21520 | Plate | 1 |
| 18 | SA 8230-21550 | Plate | 1 |
| 19 | SA 8230-21650 | Piston | 1 |
| 20 | SA 8230-21660 | Spring | 12 |
| 21 | SA 8230-21670 | Plate | 2 |
| 22 | SA 8230-03560 | Plate | 2 |
| 23 | SA 8230-27160 | Sealing ring | 1 |
| 24 | SA 9511-12175 | O-ring | 1 |
| 25 | SA 9511-12210 | O-ring | 1 |
| 26 | SA 8230-21580 | Ball Bearing | 1 |
| 27 | SA 8230-21590 | Ball Bearing | 1 |
| 28 | SA 8230-21600 | Support | 2 |
| 29 | SA 8230-21610 | Pin | 4 |
| 30 | SA 8230-15150 | Spring | 1 |
| 31 | VOE 14500089 | Spindle; SER NO 10001-14677SER NO 30001-30780 | 1 |
| VOE 14535473 | Spindle; SER NO 14678-SER NO 30781- | 1 | |
| 32 | SA 9511-12008 | O-ring | 2 |
| 33 | SA 9511-22230 | O-ring | 1 |
| 34 | SA 8220-13340 | Pin | 1 |
| 35 | VOE 14500083 | Flange | 1 |
| 36 | SA 8230-21790 | Flange | 1 |
| 37 | VOE 14500084 | Flange | 1 |
| 38 | VOE 14500085 | Spool | 1 |
| 39 | VOE 14535476 | Piston | 1 |
| 40 | SA 8230-02710 | Plug | 2 |
| 41 | SA 8230-21700 | Stop | 2 |
| 42 | SA 8230-03590 | Plug | 2 |
| 43 | SA 8230-03600 | Check valve | 2 |
| 44 | SA 8230-02760 | Spring | 2 |
| 45 | SA 8230-03610 | Spring | 2 |
| 46 | SA 8220-14930 | Plug | 4 |
| 47 | SA 9511-12032 | O-ring | 2 |
| 48 | SA 9511-1222A | O-ring | 2 |
| 49 | SA 8230-30410 | Plug | 2 |
| 50 | SA 8230-19210 | Plug | 2 |
| 51 | SA 8220-14920 | Plug | 8 |
| 52 | SA 8230-20520 | Plug | 2 |
| 53 | SA 8230-21710 | Spool | 1 |
| 54 | VOE 14500087 | Spring | 1 |
| 55 | SA 9676-38000 | Ball; SER NO 10001-14677SER NO 30001-30780 | 2 |
| VOE 14535475 | Ball; SER NO 14678-SER NO 30781- | 2 | |
| 56 | SA 8230-08630 | Filter | 1 |
| 57 | SA 8230-23140 | Plug | 2 |
| 58 | SA 8230-21890 | Plug | 2 |
| 59 | SA 9511-12005 | O-ring | 2 |
| 60 | SA 9511-12008 | O-ring | 2 |
| 61 | VOE 14500088 | Ball | 2 |
| 62 | SA 9511-12011 | O-ring | 2 |
| 63 | SA 9511-12018 | O-ring | 2 |
| 64 | SA 9511-12014 | O-ring | 2 |
| 65 | SA 8230-27130 | Orifice; SER NO 10001-14677SER NO 30001-30780 | 1 |
| VOE 14535474 | Orifice; SER NO 14678-SER NO 30781- | 1 | |
| 66 | SA 9016-11608 | Bolt | 12 |
| 67 | SA 8230-21640 | Relief valve | 2 |
| 100 | SA 8230-21810 | Sealing Kit | 1 |
Our facility includes over 4000 square meters of three-dimensional warehouse space plus 2000 square meters of outdoor storage, ensuring adequate inventory levels and rapid response to customer requirements. Fast delivery is our competitive advantage.
